Wall Mount for Sonos Beam Soundbar

Wall Mount for Sonos Beam

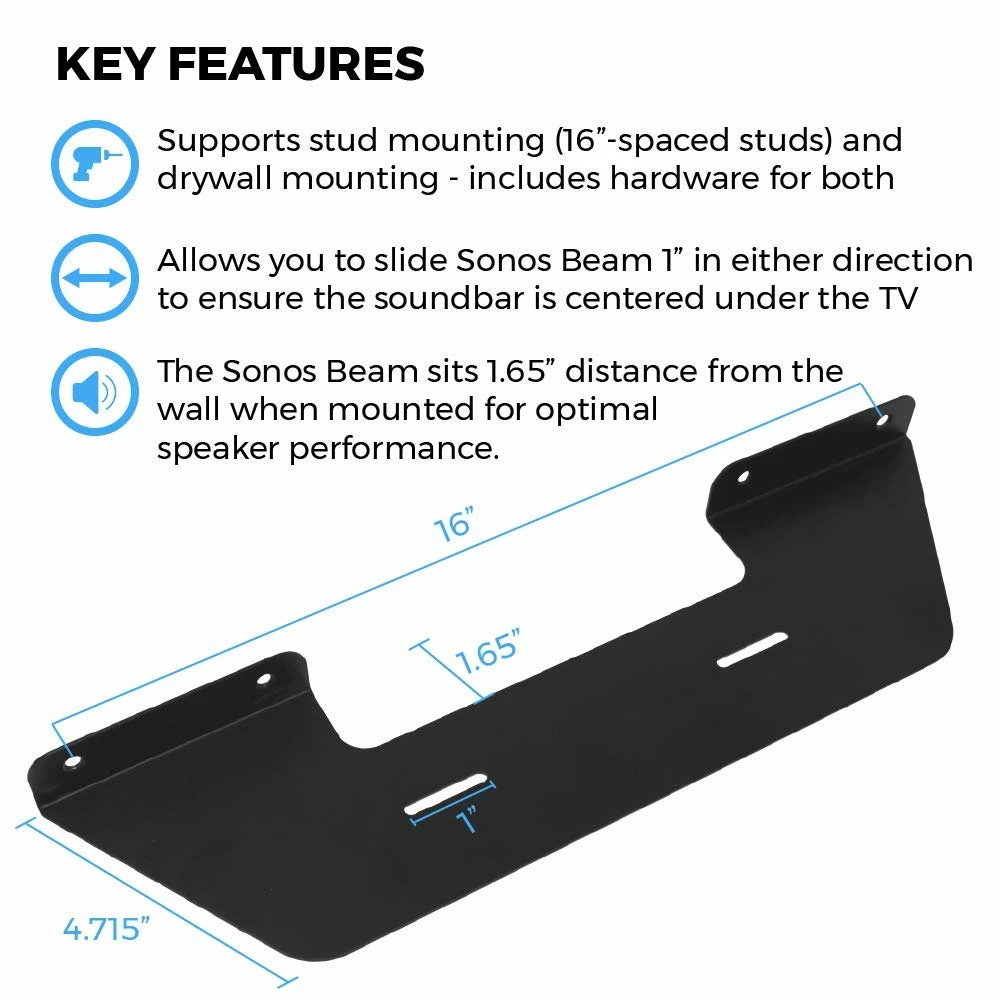

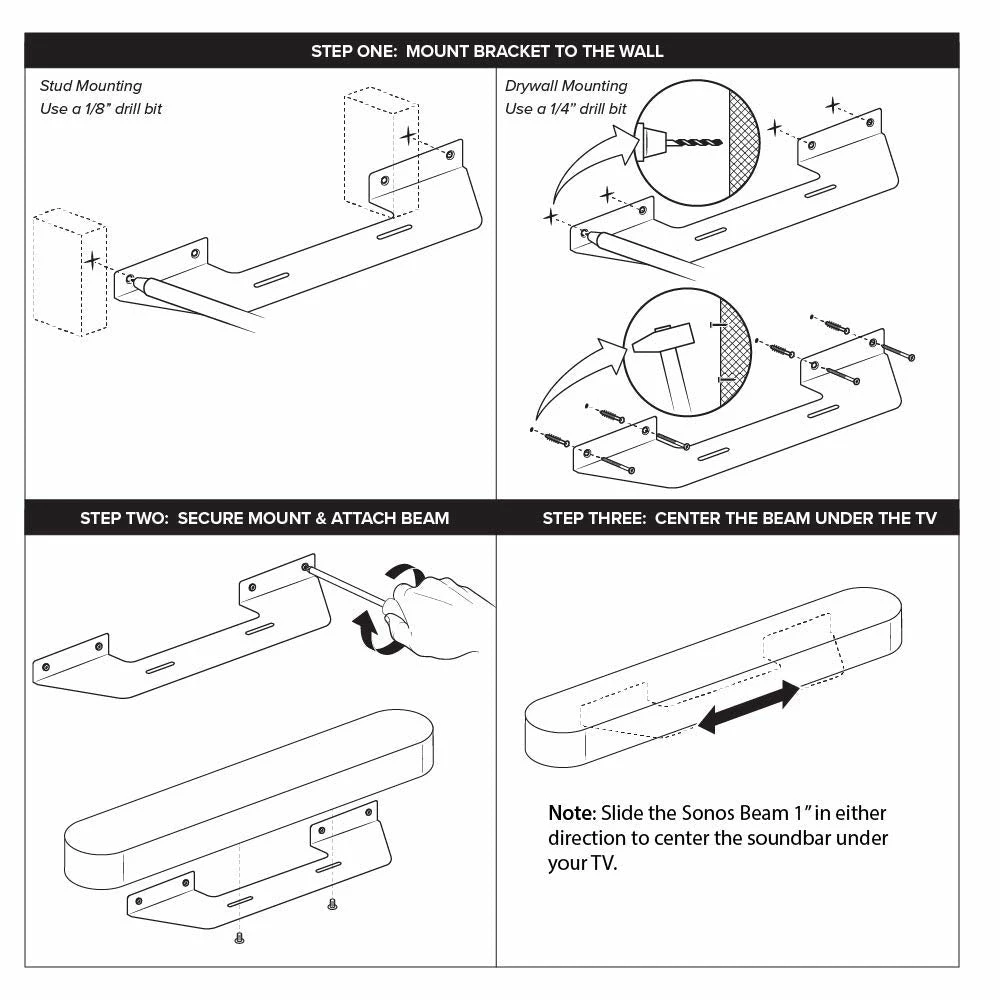

Supports stud mounting and drywall mounting:

• Includes necessary hardware for both
• Use 1/8″ drill bit for stud mounting and a 1/4″ drill bit for drywall mounting
• Mount designed for 16″-spaced studs

Allows you to slide the Sonos Beam after mounting the bracket to center the speaker under the TV:

• Slide the Sonos Beam 1″ in either direction and then secure with the included screws
• Allows adjustments after mounting the bracket to the wall

Supports optimal speaker performance by having the Sonos Beam sit 1.65″ from the wall when mounted

• Follows guidelines published by Sonos
• Allows for the wires and cords to pass behind the Beam

Specs

Included Hardware

• Mounting bracket
• Installation screws
• M5 stud mounting screws
• M5 drywall mounting screws
• M5 drywall anchors

Tools Needed for Installation

• Phillips head screwdriver
• 1/4 inch drill bit for drywall mounting
• 1/8 inch drill bit for stud mounting
• Power drill
• Hammer

Manual

101-2044 Manual
